Traversable wormholes

Hypothetical passages through curved spacetime that connect distant regions by a shorter internal route while raising severe stability, energy, and causality problems.

Spoilers included

Atlas concept articles show complete linked-story interpretations and visual examples immediately.

Visual field guide · transferable modelConcept teaching model

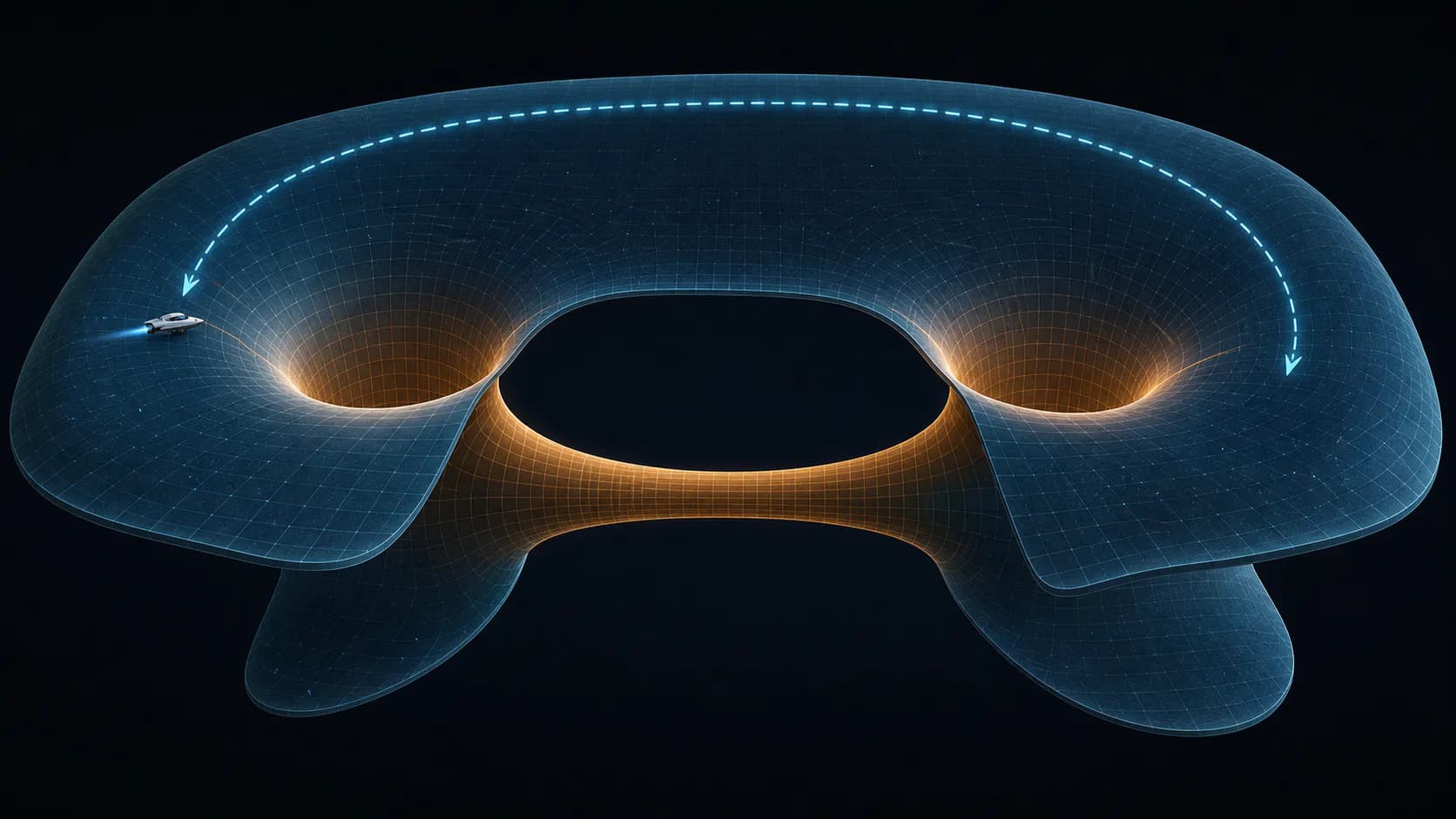

A curved spacetime surface offers a long route around its exterior and a short illuminated throat between two distant mouths.

One destination, two very different path lengths

The cyan route crosses ordinary external space; the amber throat connects the same regions through a shorter hypothetical geometry without making the traveler locally outrun light.

  1. 01

    Ordinary route

    The dashed cyan path remains on the external spacetime surface and must cross the full separation.

  2. 02

    First mouth

    The traveler enters one opening in an otherwise ordinary local region.

  3. 03

    Traversable throat

    The shorter amber connection must remain open, horizon-free, and gentle enough to cross.

  4. 04

    Second mouth

    The exit returns the traveler to ordinary spacetime near the distant destination.

The idea in plain English

Plain idea

What changes

A traversable wormhole is a hypothetical tunnel through spacetime with two openings, or mouths. Entering one mouth could provide a much shorter route to the region around the other than traveling through ordinary space between them.

Mechanism

How it operates

General relativity describes gravity as geometry. Some mathematical geometries connect two separated regions through a throat, but a useful passage must remain open, avoid an event horizon, limit tidal forces, and last long enough for matter and signals to cross. Known classical matter does not provide an established way to satisfy all of those conditions.

Human stakes

Why it matters

A shortcut would change more than travel time. Whoever placed, stabilized, or scheduled the mouths could shape migration, trade, rescue, military movement, and communication. Moving the mouths relative to one another could also create a time offset, turning transport infrastructure into a causality problem.

Used in: 8 catalog novels

Related: Interstellar travel · Time travel and temporal displacement · Relativistic time dilation

A few terms make the rest of the explanation easier to follow.

Mouth
One entrance to the connected geometry, located in an otherwise ordinary region of spacetime.
Throat
The narrow internal region joining the mouths; its size and stability determine whether anything can pass.
Event horizon
A boundary beyond which signals cannot return to an outside observer; a two-way traversable passage must avoid trapping its traveler behind one.
Energy condition
A mathematical restriction describing physically reasonable energy and pressure; many wormhole models require violations associated with exotic stress-energy.

Use the idea while reading

Turn the definition into three observations

Do not begin by asking whether a novel is “about” traversable wormholes. Begin with what changes in the lives of its characters, then use the concept to explain the mechanism underneath that change.

  1. 01

    Notice whether the two mouths already exist or must be built and transported.

  2. 02

    Notice what keeps the throat open and protects travelers from tides or radiation.

  3. 03

    Notice who controls access when the shortcut becomes civilization-scale infrastructure.

Keep one question open: Does the story explain a spacetime connection or merely rename instantaneous travel?

Avoid the shortcut: A wormhole is not simply a black hole with an exit. Ordinary black holes contain horizons that prevent a traveler from returning, while traversability requires a specially connected geometry that stays open and avoids destructive forces.

How it works, step by step

  1. 1

    Connect separated regions

    The spacetime geometry must contain two mouths whose internal separation through a throat is shorter than the ordinary external route.

  2. 2

    Keep the throat open

    Gravity tends to close the passage. A traversable model needs stress-energy or another mechanism that prevents collapse without creating a trapping horizon.

  3. 3

    Make passage survivable

    The throat must be wide and smooth enough that tidal forces, radiation, acceleration, and travel time do not destroy the traveler or signal.

  4. 4

    Control clocks and access

    The motion and gravitational history of each mouth affect their time relationship, while institutions must decide who can use a route whose failure or capture has distant consequences.

A concrete example

A one-kilometer route across ten light-years

A civilization maintains two mouths: one near its home world and one near a star ten light-years away through ordinary space.

  1. 01

    A traveler approaches the home mouth instead of accelerating a ship for a decade-long external journey.

  2. 02

    Inside the connected geometry, the traveler follows a short throat while local clocks and motion remain ordinary along that path.

  3. 03

    The traveler exits near the distant star, but the network remains useful only while both mouths stay stable, synchronized, protected, and politically accessible.

The point

The shortcut changes the path rather than locally outrunning light. Its apparent convenience depends on unexplained construction, stabilization, placement, and governance.

What is real, and what remains uncertain

First separate what we can observe or build today from what remains a prediction or a fictional extension.

What evidence supports it

Valid model geometry, unverified technology

Wormhole-like solutions can be written within general relativity, and physicists study their constraints. No traversable wormhole has been observed, created, or shown to be buildable with known matter and engineering.

A common misunderstanding

A wormhole is not simply a black hole with an exit. Ordinary black holes contain horizons that prevent a traveler from returning, while traversability requires a specially connected geometry that stays open and avoids destructive forces.

Try this example in your head

Two cities are ten light-years apart through ordinary space but each contains one mouth of a stable wormhole whose internal path is one kilometer. A courier crosses in minutes. Who owns the route, and what happens if one city accelerates its mouth until the clocks at the entrances no longer agree?

No observed passages

Mathematical solutions do not establish that nature forms traversable wormholes or that a civilization could manufacture and position their mouths.

Exotic support

Many models require negative-energy behavior or violations of classical energy conditions at scales and durations not known to be physically achievable.

Causality pressure

Relative motion or gravity can offset the mouths' clocks and permit closed timelike curves in some models, suggesting that unknown quantum-gravity effects may forbid or alter the construction.

How science fiction tests the idea

Stories usually test both the promise of an idea and the trouble it creates.

Its promise

A stable shortcut could turn interstellar distance into navigable infrastructure rather than a lifetime barrier.

Its problem

A network that controls spacetime passages would also control access, chronology, and the terms on which distant societies can meet.

What to notice in a story

  1. 01

    Whether the two mouths already exist or must be built and transported

  2. 02

    What keeps the throat open and protects travelers from tides or radiation

  3. 03

    Who controls access when the shortcut becomes civilization-scale infrastructure

Novels that use this idea

Cosmic scale

Cautious · Layered

Abaddon's Gate

When an alien Ring opens beyond Uranus, a human flotilla carries its old rivalries into a place whose physical rules no one understands.

Civilization scale

Hopeful · Demanding

Anathem

A young scholar raised behind monastery walls follows his exiled teacher into a planetary crisis where rival intellectual traditions must decide whether an alien ship is a visitor, a mirror, or a weapon.

Five travelers follow branching spacetime routes toward a galactic hub while Earth observes a stationary capsule, a short clock interval, and blank recordings.

Cosmic scale

Hopeful · Layered

Contact

Wormholes operate as a galactic transit network: the physical shortcut is inseparable from the older civilization that controls its stations, routes, and permission to return.

Visual example · One event produces two incompatible records

Cosmic scale

Hopeful · Demanding

Diaspora

A digital person born without a human original joins a civilization-wide flight from astrophysical disaster and follows a trail beyond familiar space, bodies, and universes.

Civilization scale

Cautious · Layered

Endymion

Centuries after the WorldWeb falls, Raul Endymion rescues a girl from the Time Tombs and flees a resurrection empire through the dead paths of its former portals.

Cosmic scale

Dark · Demanding

Hyperion

Seven pilgrims travel toward a time-reversing valley and the Shrike, telling the stories that made each of them part of the same approaching catastrophe.

Cosmic scale

Cautious · Demanding

The Fall of Hyperion

As war reaches Hyperion, a new Keats cybrid dreams the pilgrims' fates and helps expose that humanity's instant-travel network is also the TechnoCore's hidden body.

Cosmic scale

Hopeful · Demanding

The Rise of Endymion

Aenea begins teaching a direct, embodied alternative to Pax resurrection while Raul crosses years of time debt to rejoin her before the Core closes its trap.

Questions to keep thinking about

Does the story explain a spacetime connection or merely rename instantaneous travel?

What physical cost, failure mode, or causality rule limits the shortcut?

Does faster access distribute power or concentrate it at the mouths?
